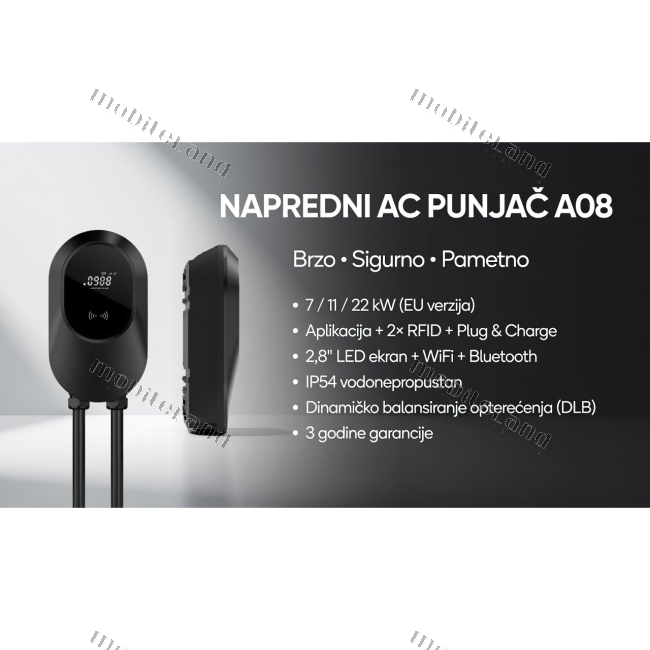

A08 22KW Electric Car Charger

The A08 AC charger is a wall-mounted charging station for electric vehicles, in the EU version with a Type 2 connector according to the IEC 62196-2 standard. This is the 22 kW version, which, with a 400 V three-phase connection, means significantly faster charging than via a regular household socket — the car charges overnight or during the workday, without dependence on public infrastructure. The device can also be powered single-phase at 230 V, making it applicable where a three-phase connection is not available.

Management is handled in three ways: via a mobile application, with two RFID cards included with the charger, or via the plug and charge function when you want charging to start as soon as you connect the cable. The application allows you to schedule charging in a cheaper night tariff, adjust the current intensity, track charging history and cost estimates, share accounts with family or employees, and perform OTA firmware updates. Support for OCPP 1.6 JSON means the station can be linked to standard charging management platforms, which is important if you install the charger in a company, hotel, or residential building.

For outdoor installation, two data points are crucial: IP54 enclosure protection and an operating range of -25 to 50 °C, so the charger withstands both coastal humidity and continental winters. The safety package is complete — protection against overcurrent, overvoltage, undervoltage, overheating, leakage current, disconnected PE, and lightning, with type A leakage protection and DC 6 mA detection, meaning no additional expensive DC protection device is needed. Optional Dynamic Load Balancing adjusts the charging power to the facility's current consumption and prevents the main fuse from tripping when large consumers are turned on simultaneously. Installation should be carried out by a qualified electrician.
