Teracell Plus Battery for Huawei P20 / Honor 10, 3320 mAh

Name: Teracell Plus Battery for Huawei P20 / Honor 10 HB396285ECW
Brand: Teracell
SKU: 1066305
Price: 18.90 EUR
Availability: InStock

Details

Teracell Plus battery for Huawei P20 and Honor 10 — normal daily endurance

When the Huawei P20 or Honor 10 drains by noon, shuts down in cold weather, or shows unrealistic percentages, a worn-out battery is the most common cause. The Teracell Plus battery model HB396285ECW helps the phone regain normal daily endurance and extends its lifespan without purchasing a new device.

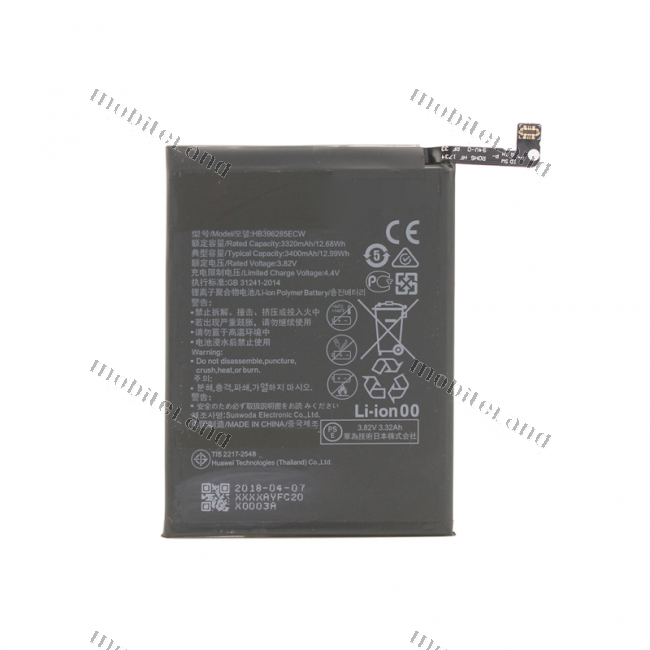

According to the label, it is a lithium-ion polymer battery with a rated capacity of 3320 mAh (typical 3400 mAh) and a rated voltage of 3.82 V. The packaging highlights a double protection circuit, and the battery connects to the motherboard via a flex cable.

Replacement requires opening the phone's back cover, so service installation is recommended. The battery is suitable for technicians and owners of both models using the specified battery designation.

Key features

Compatibility: intended for Huawei P20 and Honor 10 and for battery designation HB396285ECW.
Capacity: rated 3320 mAh (12.68 Wh), typical 3400 mAh (12.99 Wh) according to the label.
Protection: double protection circuit (Double IC), as highlighted on the packaging.
Technology: lithium-ion polymer battery with a rated voltage of 3.82 V and a maximum charging voltage of 4.4 V.
Connector: flex cable with a connector on the top right side, for connecting to the motherboard.
Packaging: transparent plastic Teracell blister with a hanging hole.

Line	Plus
Brand	Teracell
Connector	Flex cable, top right side
Packaging	Transparent plastic blister with a hanging hole
Protection	Double protection circuit (Double IC)
Technology	Lithium-ion polymer (Li-ion Polymer)
Label Marks	CE, GB 31241-2014
Product Type	Replacement mobile phone battery
Compatibility	Huawei P20, Honor 10
Rated Voltage	3.82 V
Rated Capacity	3320 mAh / 12.68 Wh
Typical Capacity	3400 mAh / 12.99 Wh
Battery Designation	HB396285ECW
Maximum Charging Voltage	4.4 V

Frequently asked questions

Which phones is this battery compatible with?

The Teracell Plus battery is intended for Huawei P20 and Honor 10, and the battery code is HB396285ECW.

What is the battery capacity?

The rated capacity is 3320 mAh (12.68 Wh), and the typical capacity on the label is 3400 mAh (12.99 Wh).

How is the battery packaged?

The battery comes in a transparent plastic blister pack with a hanging tab.

Does the battery have protection?

Yes, the packaging highlights a double protection circuit (Double IC).

Can I replace the battery myself?

Replacement requires opening the back cover of the phone, so professional service installation is recommended. The battery connects to the motherboard via a flat flexible cable with a connector on the upper right side.
